Y2-355~450系列低壓大功率三相異步電動機

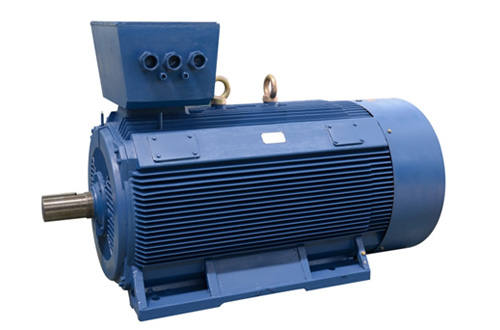

Y2-355~450 Series Low Voltage Medium Size Three Phase Asynchronous Motor
|
概述 |
Summary |
|
機座號：H355~H450 |
Frame Size: H355~H450 |
|
額定功率：132~900kW |
Rated Power: 132~900kW |
|
極數：2~12極 |
Poles: 2p,4p,6p,8p,10p,12p |
|
額定頻率：50Hz |
Rated Frequency: 50Hz |
|
絕緣等級：F |
Insulation Class: F |
|
防護等級：IP55 |
Protection Degree: IP55 |
|
工作制：S1連續工作制 |
Duty: S1 |
|
冷卻方式：IC411 |
Cooling Method: IC411 |
結構特點 Structural characteristics
Y2系列低壓大功率電動機采用高強度鑄鐵結構，具有可靠性高、造型美觀、噪音低、振動小等特點，適用于風機、水泵、壓縮機及工程機械等多種工業領域。
The YE2 series motors with high strengh cast iron structure, have the characteristics of high reliability, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, construction machinery and other industrial fields.
